Abstract: The Diadem Leaf-nosed Bat Hipposideros diadema (E. Geoffroy, 1813) is recorded for the first time from the Andaman Islands, India. A solitary female specimen was collected on October 13, 2015 from a limestone cave on Baratang Island. Cranial measurements and other morphological characters indicate that the specimen differs from the endemic subspecies, the Nicobar Diadem Leaf-nosed Bat Hipposideros diadema nicobarensis (Dobson, 1871), but compares favourably with the South-east Asian subspecies, Mason’s Diadem Leaf-nosed Bat Hipposideros diadema masoni (Dobson, 1872), in description, craniodental characters, and echolocation calls. This is the first record of Hipposideros diadema (E. Geoffroy, 1813) from Andaman Islands, and the subspecies Mason’s Diadem Leaf-nosed Bat Hipposideros diadema masoni (Dobson, 1872) from India.

Keywords: Hipposideros diadema masoni, Hipposideros diadema nicobarensis, new record, range extension.











doi: http://dx.doi.org/10.11609/jott.2862.8.11.9316-9321 | ZooBank: urn:lsid:zoobank.org:pub:33215A4E-8637-466D-841A-B21BD363A2ED

Editor: Paul Bates, Harrison Institute, Kent, UK. Date of publication: 26 September 2016 (online & print)

Manuscript details: Ms # 2862 | Received 20 June 2016 | Final received 03 August 2016 | Finally accepted 16 September 2016

Citation: Srinivasulu, B., A. Srinivasulu, C. Srinivasulu, T.H., A. Gopi & G. Jones (2016). First record of the Diadem Leaf-Nosed Bat Hipposideros diadema (E. Geoffroy, 1813) (Chiroptera: Hipposideridae) from the Andaman Islands, India with the possible occurrence of a hitherto unreported subspecies. Journal of Threatened Taxa 8(11): 9316–9321; http://dx.doi.org/10.11609/jott.2862.8.11.9316-9321

Copyright: © Srinivasulu et al. 2016. Creative Commons Attribution 4.0 International License. JoTT allows unrestricted use of this article in any medium, reproduction and distribution by providing adequate credit to the authors and the source of publication.

Funding: UGC-UKIERI Thematic Partnership Programme, New Delhi; University Grants Commission, New Delhi; Science and Engineering Board, Department of Science and Technology, Government of India



Conflict of Interest: The authors declare no competing interests.



Acknowledgements: We thank UGC–UKIERI Thematic Grants Programme, New Delhi for research funding. CS thanks DST-SERB, New Delhi for research grants. We also thank the Principal Chief Conservator of Forests (Wildlife) and Chief Wildlife Warden, Andaman & Nicobar Forest Department for study and collection permit; the Vice Chancellor, Osmania University for facilities and permissions to carry out field work; the Head, Department of Zoology, Osmania University for necessary facilities; the locals at Baratang and Nayadera for hospitality; and Titley Electronics, New South Wales, Australia for ANABAT SDI bat detector and AnalookW software.







The Andaman & Nicobar Island archipelago (11.74010N & 92.65860E) is a highly species-rich group of islands in the Bay of Bengal, extending from the coast of southern Myanmar to Sumatra. The Andaman Islands comprise about 500 islands and islets, separated by a ‘Ten-degree Channel’ from the Nicobar Islands, which consist of around 20 islands. These two island groups hold a completely distinct type of rainforest ecosystem to that of mainland India, and also differ from each other (Balakrishnan 1989; FSI 2015). The Andaman Islands are part of the Indo-Burma biodiversity hotspot and the Nicobar Islands are part of the Sundaland biodiversity hotspot (Myers et al. 2000). These islands are very rich in their fauna and flora, and a great number of taxa are endemic (Rao et al. 2013; Murugan et al. 2016).

The chiropteran fauna of the Andaman & Nicobar Islands has been summarized by Hill (1967), and more recently by Aul et al. (2014). Prior to the work of Aul et al. (2014), it was noted that species of the Hipposideros genus are restricted to the Nicobar Islands, and those of genus Rhinolophus to the Andaman Islands. Historically, as of 1967, one endemic subspecies — Hipposideros diadema nicobarensis (Dobson, 1871) was reported from Trinkut Island and Great Nicobar Island in the Nicobar group of islands (Hill 1967). This subspecies was also reported from Katchal Island (Aul & Marimuthu 2006). Aul et al. (2014) summarized the chiropteran diversity of the archipelago with a note on the effects of the 2004 Indian Ocean Tsunami, and also reported the presence of two species of genus Hipposideros — H. fulvus and H. larvatus, from the Andaman Islands. In this paper, we report for the first time, the presence of the Diadem Leaf-nosed Bat Hipposideros diadema from the Andaman Islands and provide the first specimen-based record of Hipposideros diadema masoni from India.



Study Area and Methods

The authors have been surveying the Andaman Island group to document its chiropteran diversity since 2012. In 2012, a short-term survey was conducted on Baratang Island (1206’21”N & 92045’46”E), and subsequently a survey of most major islands was conducted from 2014–2016. During the initial survey on Baratang Island, the first author (BS) sighted a large hipposiderid bat with characteristic pale hairs on the flanks living amongst a colony of rhinolophids and myotids in a limestone cave. After this, on two occasions the same was sighted by us in 2014 and 2015. In October 2015, we collected this individual using a hoop net, took external morphometric measurements using vernier calipers (Mitutoyo LC=0.01) and made ultrasonic recordings using an Anabat SD1 (Titley Electronics). The bat escaped during transfer to a collection bag. Following this, about a fortnight later, we were alerted by some locals attempting to catch bats in the same cave. By the time we arrived on location, they had shot (using an air-rifle) a bat (Image 1), which on closer observation was identified to be the large hipposiderid bat that was caught by us before. The air-rifle pellet had, unfortunately, damaged the skull. We collected the specimen, preserved it as a voucher and deposited it in the Natural History Museum, Osmania University, Hyderabad, India. We also studied and compared the Andaman specimen collected during the present survey with the specimens of large-bodied hipposiderids such as Hipposideros diadema (H. d. masoni: ZSI-K 291/126L, HZM 14.38116; H. d. nicobarensis: ZSI-K 10308, HZM 7.35313) and Hipposideros larvatus (ZSI-K 18554, ZSI-K 10290; HZM 17.34708; HZM 31.37787) at the Zoological Survey of India, Kolkata (ZSI-K), West Bengal, India and Harrison Institute (HZM), Sevenoaks, United Kingdom. The following external and craniodental measurements of the specimen were taken (all in mm): External: FA - forearm length, E - ear length, Tl - tail length, Tib - tibia length, Hf - hindfoot length, 3mt - third metacarpal, 4mt - fourth metacarpal, 5mt - fifth metacarpal, 1ph3mt - first phalanx of third metacarpal, 2ph3mt - second phalanx of third metacarpal, 1ph4mt - first phalanx of fourth metacarpal, 2ph4mt - second phalanx of fourth metacarpal, Craniodental, GTL - greatest length of the skull, CBL - condylobasal length, CCL - condylocanine length, CM3 - maxillary toothrow, C1-C1 - anterior palatal width, M3-M3 - posterior palatal width, ZB - zygomatic breadth, BB - braincase breadth, CM3 - mandibular toothrow, M - mandible length.

Genetic analysis - A 3mm wing punch was taken from the voucher specimen (AN2) and stored in silica gel. Genomic DNA was extracted using a QIAGen Blood and Tissue kit (QIAGen International, Netherlands). Polymerase Chain Reaction was carried out and we amplified a portion (~652 bp) of the mitochondrial cytochrome C oxidase subunit I gene using the primer pair VFi_t1 (5’-TGTAA AACGACGGCCAGTTCTCAACCAACCACAAAGACATTG-3’) and VR1_t1 (5’-CAGGAAACAGCTATG ACTAGACTTCTGGGTGGCCAAAGAATC-3’) (Ivanova et al. 2007). The PCR reaction was performed in a 25μl reaction volume containing 2μl of template DNA, 12.5μl of 2X reaction buffer (0.05 U/μL Taq DNA polymerase, reaction buffer, 4 mM MgCl2, 0.4 mM of each dNTPs), 0.5μl of each primer, and 9.5μl nuclease free water. The thermal profile followed included: 940C for 1 min, five cycles of 940C for 30 s, 500C for 40 s, and 720C for 1 min, followed by 35 cycles of 940C for 30 s, 540C for 40 s, and 720C for 1 min, with a final extension at 720C for 10 min (Ivanova et al. 2007). The amplified PCR products were sequenced using an ABI prism 3730 sequencer (Applied Biosystems, USA) and Big dye terminator sequencing kit (ABI Prism, USA). The gene sequence (Genbank accession number will be provided in revision) obtained was analyzed by using BLAST (Altschul et al. 1990) to determine similar sequences in the NCBI (www.ncbi.gov) database. Additional sequences of other related species were retrieved from the NCBI GenBank database for phylogenetic analysis. Rhinolophus lepidus was used as an outgroup taxon. The sequences were aligned using MUSCLE (Edgar 2004) incorporated in MEGA6 (Tamura et al. 2013) using default parameters. The alignment was processed in Gblocks v0.91b (Castresana 2000) and the final alignment of 581 bp was used for phylogenetic analysis. ModelTest (Posada & Crandall 1998) in conjunction with MEGA6 was used to choose the best fitting maximum likelihood DNA substitution model for the combined dataset, based on the corrected Bayesian Information Criterion (BICc) scores for each model type. The model chosen for the given data by ModelTest based on least BICc was TN93+I (Tamura-Nei + Invariant sites) (Tamura & Nei 1993). The chosen model for the combined dataset along with obtained likelihood parameters was used to generate a maximum likelihood (ML) tree through MEGA6. Bayesian analysis was carried out in BEAST v1.8.2 (Drummond et al. 2012) using default priors. The data were partitioned into ingroup and outgroup sets and the substitution model used was based on the results of ModelTest. The program was run for 10 million generations and tree sampling was made every 1000 generations. At the end of the analysis, the standard deviation of the split frequencies was below 0.01. Convergence was double checked using Tracer v1.6 (Rambaut et al 2014) to plot the likelihood scores against the generations. The first 25% of the total number of saved trees were discarded as burn-in and a majority consensus tree was made using TreeAnnotator, included in the BEAST v1.8.2 package.





Results and Discussion

The specimen collected from the limestone cave on Baratang Island, on 13 October 2015, was a solitary adult female, sharing its roost with a large colony of bats comprising Andersen’s Leaf-nosed Bat Hipposideros pomona, the Dawn Fruit Bat Eonycteris spelaea, Horsfield’s Myotis Myotis horsfieldii, the Andaman Intermediate Horseshoe Bat Rhinolophus affinis andamanensis, and a few individuals of the Andaman Horseshoe Bat Rhinolophus cognatus.

External measurements, morphology, and craniodental measurements taken suggested that the bat was the Diadem Leaf-nosed Bat Hipposideros diadema (E. Geoffroy, 1813). On enquiry with locals who regularly visited the caves as part of an ongoing project on monitoring Edible Nest Swiftlets, we were informed that there is a sizeable colony of the species in an inaccessible subterranean cave with a narrow opening. Acoustic monitoring using Anabat SD1 and Pettersson D500x (Pettersson Elektronik ab, Uppsala, Sweden) in the vicinity of the subterranean cave claimed by locals to host the bat colony did not yield any evidence of the presence of Hipposideros diadema.

Careful study of the morphology and craniodental features of the voucher specimen revealed that the Hipposideros diadema collected by us from the Baratang Island differs considerably in size and morphological characters from Hipposideros diadema nicobarensis (Dobson, 1871) - an endemic subspecies of Diadem Leaf-nosed Bat known from Nicobar Islands. The present specimen compares in description, craniodental characters, and echolocation calls with the Southeast Asian subspecies Hipposideros diadema masoni (Dobson, 1872).

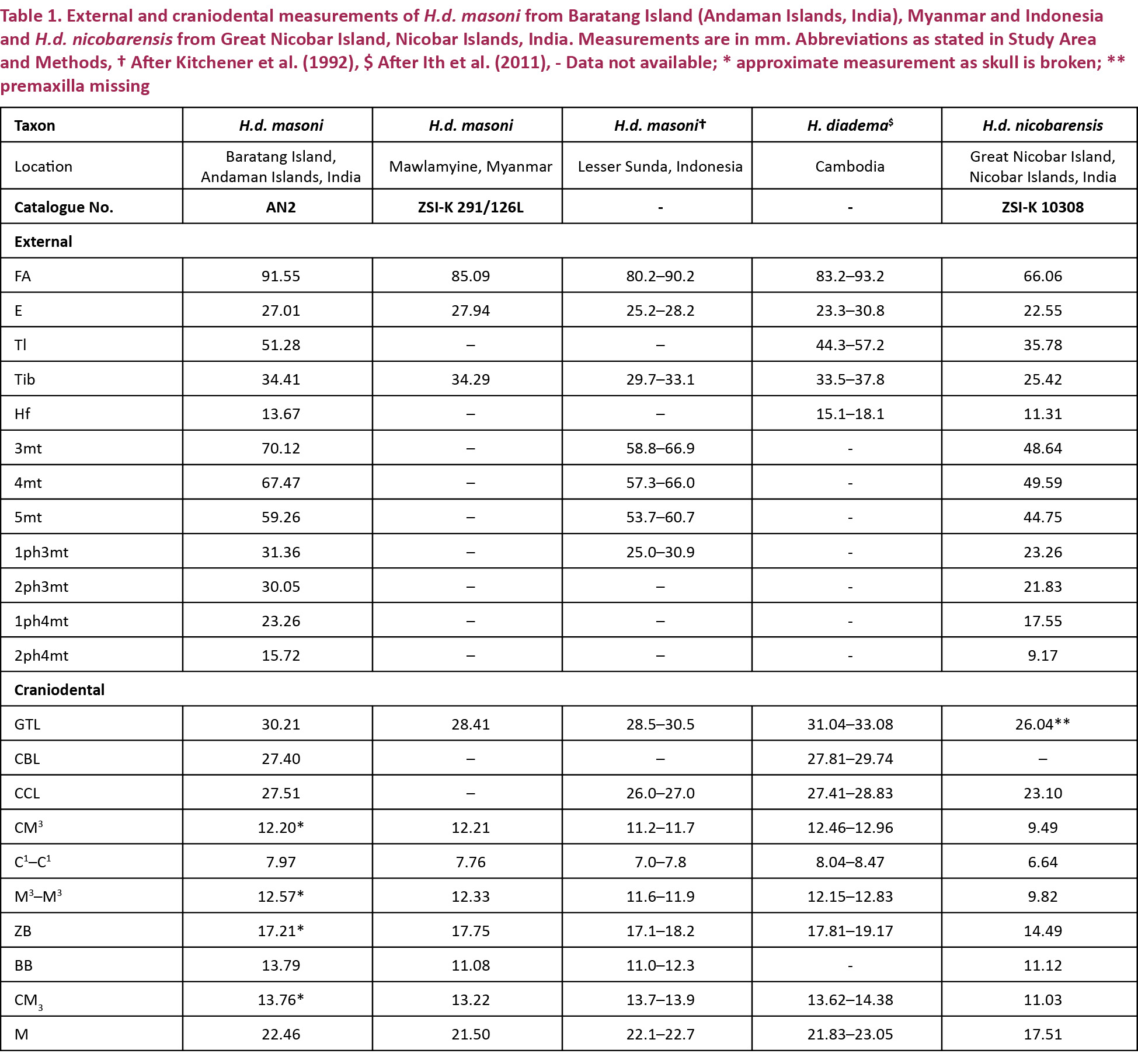

The specimen collected by us differs from the H.d. nicobarensis in having a substantially longer forearm length (91.55mm vs. 66.06mm in H.d. nicobarensis) and a much larger skull (GTL: 30.09mm vs. 26.04mm) (Table 1). The Andaman specimen is slightly larger than H. d. masoni from Mawlamyine, Myanmar (type locality) and Lesser Sunda, Indonesia (Table 1), with respect to forearm length (FA), tibia length (Tib), third metacarpal length (3mt), fourth metacarpal length (4mt), condylocanine length (CCL), anterior palatal width (C1–C1), posterior palatal width (M3–M3), and braincase breadth (BB). However, its external measurements fall in the range of that of H. diadema from Cambodia (Table 1).

A brief description of the Andaman specimen of H.d. masoni is provided below:

External characters - A large bat with a forearm length of 91.55mm. Wing attached to the base of the outer toe, and the interfemoral membrane attached to the base of the inner toe. Ear broad at the base, with 10 ridges and a broadly rounded off tip; outer margin slightly concave beneath the tip. Noseleaf broad (14.1 mm), covering the whole muzzle. Anterior leaf (9.24mm wide) with no median emargination; internarial septum long, broad at the base and gradually tapering towards the tip, nostrils round in shape with well-developed narial lappets; intermediate leaf (8.25mm wide) is fleshy and with a median ridge; posterior leaf concave with the terminal portion folding back slightly and is erect, large (12.63mm wide) and fleshy with a single median vertical septum forming a small projection above the margin, and dividing the posterior leaf into two cells. A pair of glandular swellings is present behind the posterior leaf located above each eye on either side of the noseleaf. No frontal sac observed behind the posterior leaf. Three supplementary leaflets present. A bony projection observed on the undersurface of the chin. Hair on the back is cream coloured with greyish-brown terminal portion, hairs on the shoulders extending up to beneath the ears much darker, hairs on the flanks completely pale cream in colour and form a continuous line on either side. Wing and interfemoral membranes uniform pale brown in colour. Hair on the face creamish coloured at the tips with pale brown bases. The ventral surface is pale in general. The noseleaf is yellowish-brown in colour, and is fleshy.

Craniodental - Skull large with a condylocanine length of 27.97mm. Sagittal and lambdoid crests well-developed with a shallow depression in the frontal region. Zygoma of each side robust, with well-developed dorsal process. Length of upper toothrow (CM3) 12.20mm; pm2 minute in comparison to pm3 and canine, partially extruded from the toothrow, in contact with the base of the canine and pm3; pm3 and canine not in contact with each other. Two pairs of lower incisors, outer pair tricuspid and the inner pair bicuspid; incisors in contact with canine; pm2 25% of the height of pm3. A small conical bony process observed on the symphysis of the mandible.

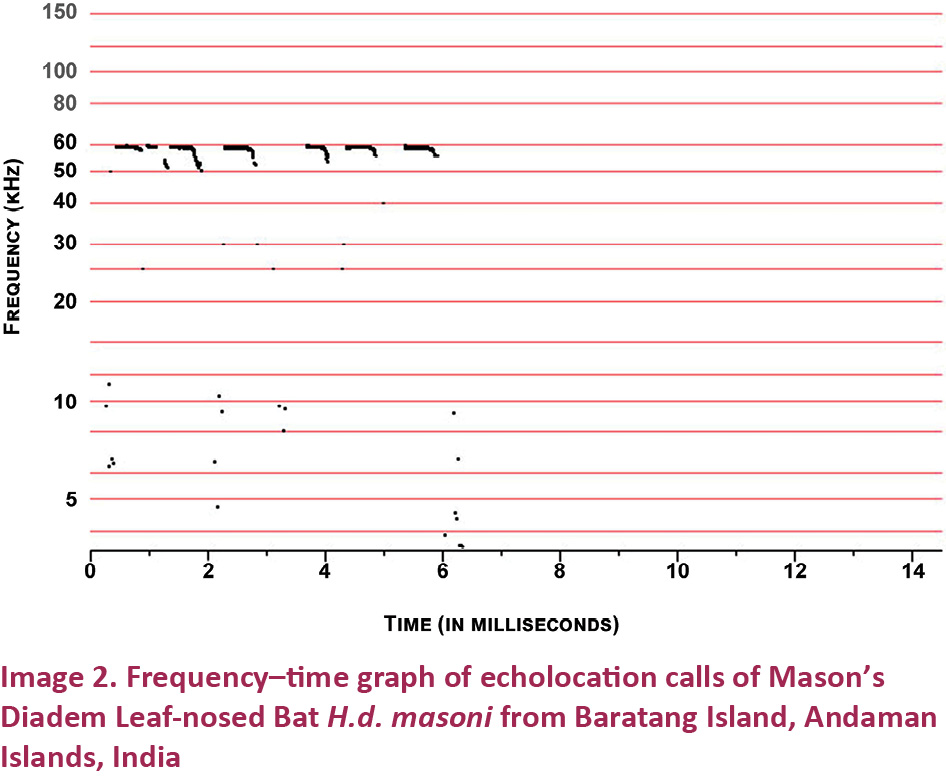

Echolocation calls - The echolocation calls of the species were recorded using an Anabat SD1 (Titley Electronics, Australia) bat detector. They were analysed in AnalookW software and frequency-time graphs were produced using a logarithmic scale of frequency (0-200 kHz). Each call was defined as an individual, discrete vocal pulse and the parameters measured were maximum frequency (Fmax), minimum frequency (Fmin), characteristic frequency (Fc) and duration (Dur). The calls produced by this species were of constant frequency (CF) with a short FM tail (Fig. 1). A total of 16 calls were recorded of which only five were of good quality and were analyzed further. The calls consisted of mean characteristic frequency (Fc) of 59.08±0.24 kHz (range: 58.82–59.26 kHz), maximum frequency (Fmax) of 59.88±0.25 kHz (range: 59.7–60.15 kHz), minimum frequency (Fmin) of 54.40±1.97 kHz (range: 51.28–55.94 kHz) and duration of 4.77±0.62 ms (range: 3.67–5.24 ms). The frequency characteristics of the echolocation calls of the specimen from the Andaman showed similarities with that of the South-east Asian forms, which produced FMAXE in the range of 57.8–61.45 kHz (Phommexay 2009; Hughes et al. 2010).

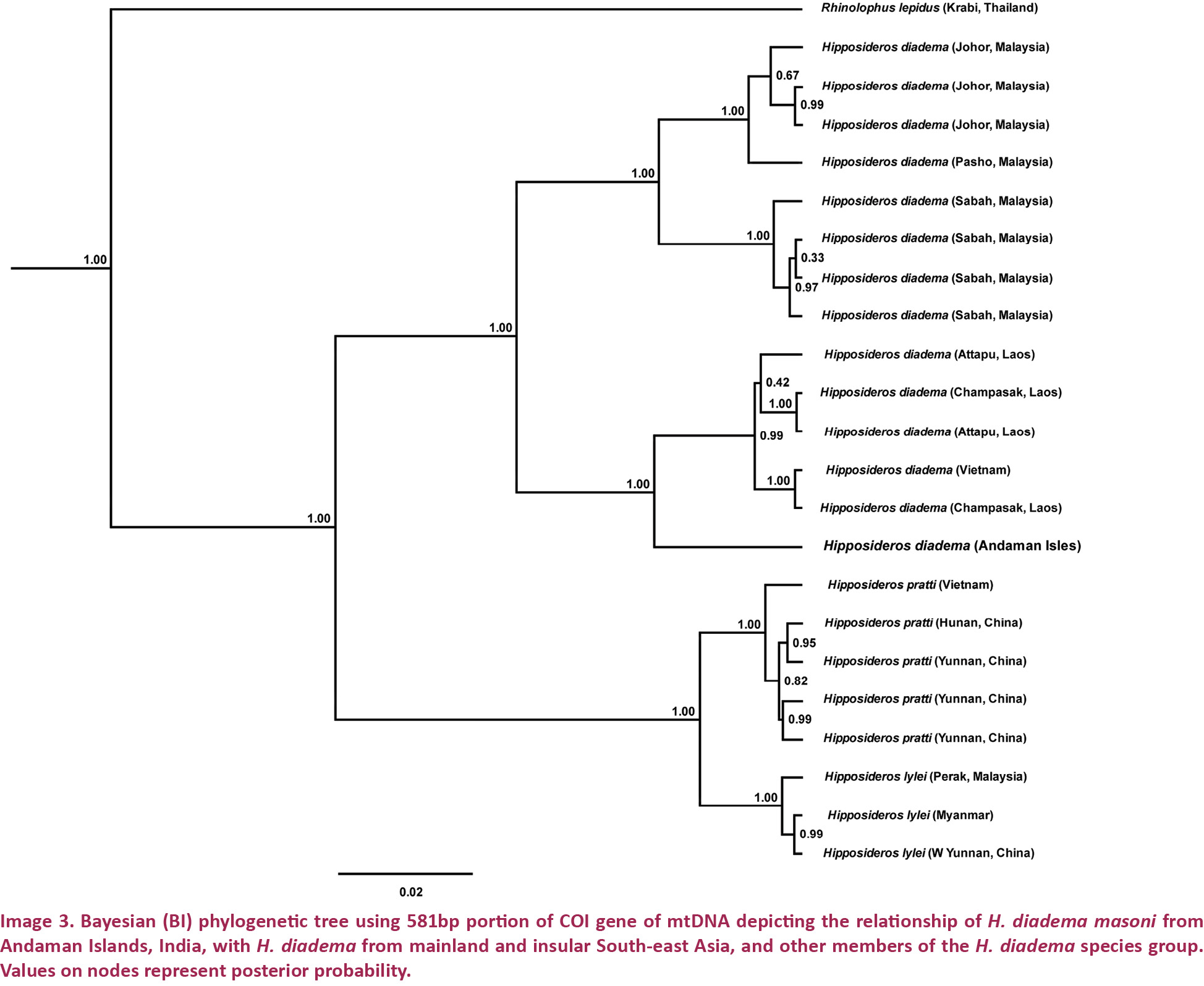

Molecular analysis - Genetic analysis based on COI gene sequences indicated that the Andaman specimen of Hipposideros diadema is closely related to those from Laos and Vietnam, along with which it forms a distinct clade (Fig. 2) both in Maximum Likelihood and Bayesian Inference methods. The specimens from Malaysia form a separate clade. The phylogenetic position of H. diadema from Andaman is supported by high posterior probability (1.0) and bootstrap value (70.0). The relationship between other members of the species group needs to be studied further to confirm the phylogenetic status of the H. diadema species group.

The echolocation calls, morphometrics (both external and cranio dental measurements) and the genetic analysis shows that the Andaman specimen matches those of the Southeast Asian specimens of H. diadema. The subspecies H.d. masoni (Dobson, 1872) is distributed throughout the Indomalayan region and differs from the typical H.d. diadema in possessing a single median septum in the posterior leaf dividing it into two cells (vs. a strong median septum with two weak lateral septa in H.d. diadema) (Andersen 1907; personal observations). The Andaman specimen matches H.d. masoni in possessing a single median septum dividing the posterior leaf into two cells, a small conical bony process from the symphysis of the mandible, and by having wings attached to the base of the outer toe (as opposed to wings attached to the base of the ankle in H.d. diadema). Interestingly, H.d. nicobarensis also shows similar characters as in H.d. masoni but is significantly smaller in overall external and craniodental measurements.

This is the first specimen-based record of H.d. masoni (Dobson, 1872) from Baratang Island and from the Andaman group of Islands, India. Our surveys in different localities of Little Andaman Island, Rutland Island, South Andaman Island, Middle Andaman Islands and islands of the Ritchie Archipelago did not yield sightings of this taxon. Even at the Baratang cave complex (consisting of 191 limestone caves) we detected this taxon only in one cave. The existence of the H.d. masoni (Dobson, 1872) in a cave on Baratang Island is enigmatic and requires further surveys to establish its continued presence north of 10O N latitude.

References





Altschul, S.F., W. Gish, W. Miller, E.W. Myers & D.J. Lipman (1990). Basic local alignment search tool. Journal of Molecular Biology 215: 403–410; http://dx.doi.org/10.1016/S0022-2836(05)80360-2

Andersen, K. (1907). Chiropteran notes. Annali del Museo civico Storia Naturale di Genova 3(43): 5–45.

Aul, B., P.J.J. Bates, D.L. Harrison & G. Marimuthu (2014). Diversity, distribution and status of bats on the Andaman and Nicobar Islands, India. Oryx 48: 204–212; http://dx.doi.org/10.1017/S0030605312000646

Aul, B. & G. Marimuthu (2006). Sighting of an albino bat in a colony of cave-dwelling Microchiropteran, Hipposideros diadema nicobarensis at the Nicobar Islands. Current Science 90: 912–914.

Balakrishnan, N.P. (1989). Andaman Nicobar Islands: vegetation and floristics. 55–68. In: Saldanha, C.J. (ed.) Andaman, Nicobar and Lakshadweep: An Environmental Impact Assessment. Oxford & IBH Publications Company, New Delhi, xi+114pp.

Castresana, J. (2000). Selection of conserved blocks from multiple alignments for their use in phylogenetic analysis. Molecular Biology and Evolution 17: 540–552; http://dx.doi.org/10.1093/oxfordjournals.molbev.a026334

Drummond, A.J., M.A. Suchard, D. Xie & A. Rambaut (2012). Bayesian Phylogenetics with BEAUti and the BEAST 1.7. Molecular Biology and Evolution 29: 1969–1973; http://dx.doi.org/10.1093/molbev/mss075

Edgar, R.C. (2004). MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Research 32(5): 1792–1797; http://dx.doi.org/10.1093/nar/gkh340

FSI. (2015). India State of Forest Report 2015. Forest Survey of India (FSI), Dehra Dun, 300pp.

Hill, J.E. (1967). The bats of Andaman and Nicobar Islands. Journal of the Bombay Natural History Society 64: 1–9.

Hughes, A.C., C. Satasook, P.J.J. Bates, P. Soisook, T. Sritongchuay, G. Jones & S. Bumrungsri (2010). Echolocation call analysis and presence-only modelling as conservation monitoring tools for Rhinolophoid bats in Thailand. Acta Chiropterologica 12: 311–327; http://dx.doi.org/10.3161/150811010x537891

Ith, S., G. Csorba, P.J.J. Bates & N.M. Furey (2011). Confirmation of seven bat species for Cambodia. Cambodian Journal of Natural History 2011: 93–103.

Ivanova, N.V., T.S. Zemlak, R. Hanner & P.D.N. Hebert (2007). Universal primer cocktails for fish DNA barcoding. Molecular Ecology Notes 7: 544–548; http://dx.doi.org/10.1111/j.1471-8286.2007.01748.x

Kitchener, D.J., R.A. How, N.K. Cooper & A. Suyanto (1992). Hipposideros diadema in the Lesser Sunda Islands, Indonesia: Taxonomy and geographic morphological variation. Records of the Western Australian Museum 16: 1–60.

Murugan, C., S. Prabhu, R. Sathiyaseelan & R.P. Pandey (2016). A checklist of plants of Andaman and Nicobar Islands. Online database available at http://www.bsienvis.nic.in/Database/Checklist-of-Andaman-Nicobar-Islands_24427.aspx

Myers, N., R.A. Mittermeier, C.G. Mittermeier, G.A.B. Fonseca & J. Kent (2000). Biodiversity hotspots for conservation priorities. Nature 403: 853–858; http://dx.doi.org/10.1038/35002501

Phommexay, P. (2009). Bat Species Diversity and Feeding Intensity in Intact Forest and Rubber Plantations in Southern Thailand. M.Sc. Thesis, Prince of Songkla University, v+91pp.

Posada, D. & K.A. Crandall (1998). MODELTEST: testing the model of DNA substitution. Bioinformatics 14: 817–818; http://dx.doi.org/10.1093/bioinformatics/14.9.817

Rao, D.V., K. Chandra & K. Devi (2013). Endemic Animals of Andaman and Nicobar Islands. Zoological Survey of India, Kolkata, 182pp.

Rambaut, A., M.A. Suchard, D. Xie & A.J. Drummond (2014). Tracer v1.6.

Tamura, K. & M. Nei (1993). Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Molecular Biology and Evolution 10: 512–526.

Tamura, K., G. Stecher, D. Peterson, A. Filipski & S. Kumar (2013). MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Molecular Biology and Evolution 30: 2725–2729; http://dx.doi.org/10.1093/molbev/mst197
